Revon Lighting is an excellent and leading solar obstruction light, manufacturer & factory in China. Our aircraft obstruction light is designed on the basis of ICAO and FAA standard. Welcome to send us an inquiry.
Overview:
ICAO FAA solar obstruction light low Intensity for aircraft warning, it flash red color night time. According to ICAO, FAA regulations, this solar obstruction light is designed for marking top of obstacle which height is not more than 45m, and this l810 solar obstruction light obstruction of light needs to keep working in night time. We adopt high intensity LEDs as light source, stable quality and long life time.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-810.
Features:
1. Adopt super bright brand LED, high intensity with a lower energy consumption.
2. Solar powered self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation.
3. Unique design and UV protected polycarbonate for the solar obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. PC materials casing.
6. With bird needle to prevent bird drop..
7. Built-in photocell for daytime and night operation.
8. Long life time lithium battery.
Specification:
|
Product Name |
ICAO FAA Solar Obstruction Light Low Intensity for Aircraft Warning |
|
Mode NO.: |
AO-SLI-S2 |
|
Color: |
Red |
|
Light source:
|
LEDs |
|
Light Intensity(cd): |
>32.5cd (other 10cd, 100cd as optional) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
>10 degree |
|
Flashing Characteristics:
|
20-60FPM or Fixed Lighting.
|
|
Operation Mode: |
Night working, daytime off |
|
Battery: |
3-4AH lithium battery |
|
Solar panel: |
Mono crystalline silicon solar panel |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
0.8kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. Mounting bracket 2. Other functions etc. |
Dimension & Installation:
Applications:

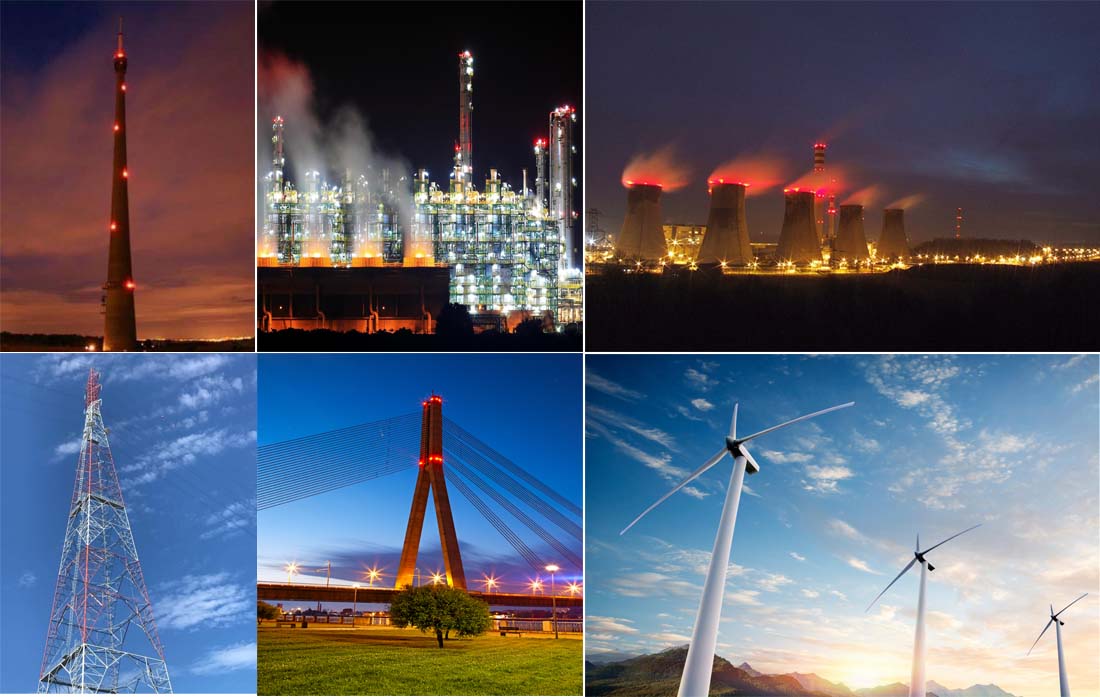

AO-SLI-S2 ICAO FAA Solar obstruction light low intensity for aircraft warning is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is not more than 45m.
