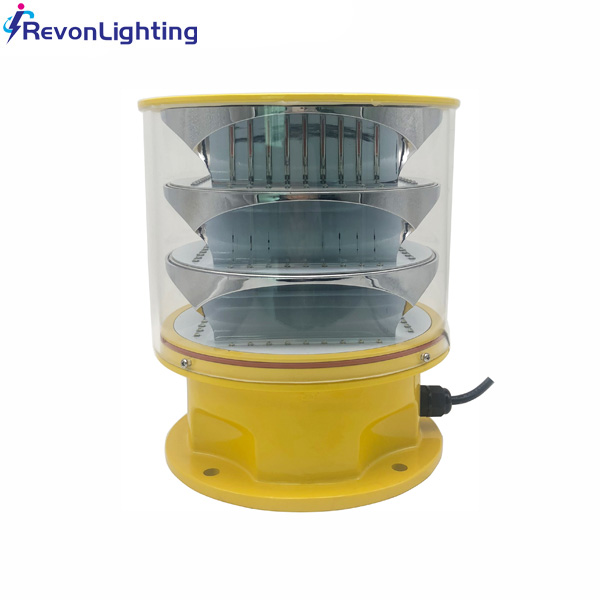

AO-HP-B2 LED ICAO identification beacon is specified to mark the heliport or airport location by emitting a flashing Morse code signal. The standard signal is a Morse code “H”, but the factory can program any signal such as site identifier or radio frequency number. Available in white or green light output.
Overview:
AO-HP-B2 LED ICAO identification beacon is specified to mark the heliport or airport location by emitting a flashing Morse code signal. The standard signal is a Morse code “H”, but the factory can program any signal such as site identifier or radio frequency number. Available in white or green light output.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.2
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Die-casting aluminum covered by hard anodizing layer have good corrosion protection and load bearing.
Specification:
|
Product Name |
Identification Beacon for Heliport or Airport |
|
Mode NO.: |
AO-HP-B2 |
|
Color: |
White,Green,Yellow, |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
>2000cd |
|
Horizontal Output(degrees): |
360 degree |
|
Installation type: |
Install on the bracket. |
|
Flashing Characteristics:
|
White/green/Yellow Alternating Flashing
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC (Details contact us) |
|
LED avg. life: |
100,000 hours |
|
Circuit Protection: |
Integrated |
|
Identification Beacon Material: |
lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
6kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. VHF pilot to ground remote control 2. Infra-Red (IR) light for NVG 3. Mounting bracket |
Dimension & Installation:
Applications:
AO-HP-B2 LED ICAO identification beacon is specified to mark the heliport or airport location by emitting a flashing Morse code signal.
