Revon Lighting is a China leading marine lantern manufacturer. Our marine lantern light is designed on the basis IALA E-200-1 366 types lighting characteristics.
Overview:

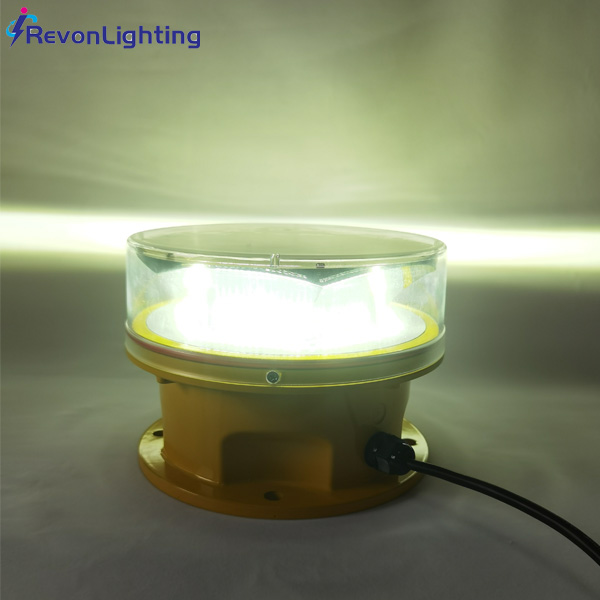

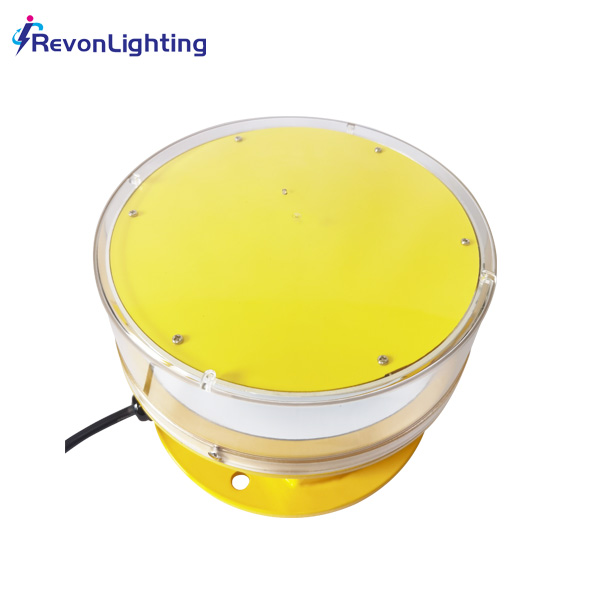

AO-ML-M2 marine Lantern 15-16nm visable range, our LED Marine Lantern can be used in light house, any other off shore site for marine or river safe navigation and warning. Our marine lantern light long life time.
Compliance:
1. IALA Recommendations E-200-1.
Features:
1. Based on LED technology, and its color complies to IALA Recommendations E-200-1.LED technology reduces maintenance time & costs.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique design and UV protected polycarbonate for the marine lantern light protect cover.
4. Marine aluminium housing, UV resistance, shockproof and corrosion proof.
5. 366 kinds of light Characteristics.
6. Low power consumption, suitable for solar and battery operation.
7. Built-in photocell for daytime and night operation.
8. Optionally integrated GPS synchronization.
Specification:
|
Product Name |
Marine Lantern Light LED Marine Lantern |
|
Mode NO.: |
AO-ML-M2 |
|
Color: |
Red/Green/yellow/white/blue etc |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
>20000cd |
|
Horizontal Output(degrees): |
360 degree |
|
Visable Range: |
15-16NM (@ Tc=0.74) |
|
Flashing Characteristics:
|
20/30/40/60fpm flashing Characteristics
|
|
Operation Mode: |
Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<25W |
|
Circuit Protection: |
Integrated |
|
Marine lantern Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
2.8kg |
|
IP Grade: |
IP68 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. IR controller 3. Solar power system. |
Dimension & Installation:
Applications:
AO-ML-M2 marine lantern light can be used in light house, buoy, and any other off shore site for marine or river safe navigation and warning. This marine lantern long life time.
