Revon Lighting power line marker balls are made by high-grade Fiberglass Reinforced Plastics(FRP), diameter of 600mm. Our aircraft warning sphere is used as high voltage power line markers. If you need powerline marker balls, please contact us now.
Overview:

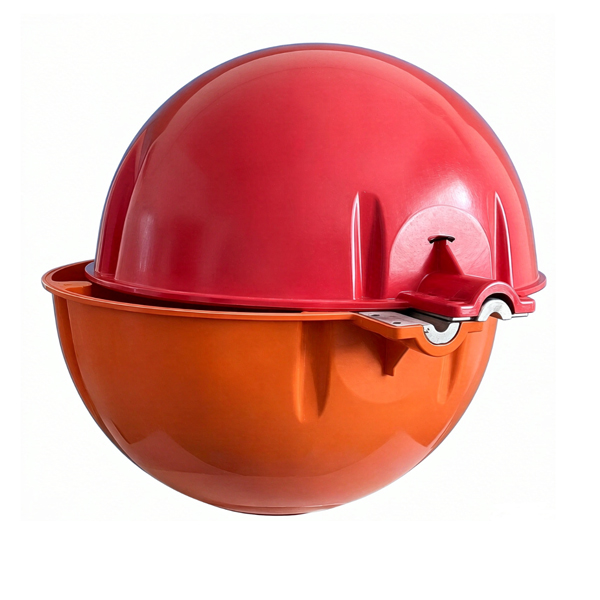

AO-WS-A1 aircraft warning sphere designed to use for high-rise transmission lines, provide daytime visual warning or nighttime visual warning if comes with reflective tape, for electricity transmission line and overhead wire for aircraft pilots, especially cross river high voltage transmission lines. This power line marker balls are made of high-grade Fiberglass Reinforced Plastics(FRP), diameter of 600mm. Our powerline marker balls are high voltage power line markers.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA AC 70/7460-1K, obstruction Marking and Lighting.
Features:
1. Fiberglass Reinforced Polymer durable material with better weather resistant.
2. Super corrosion resistant character, stainless steel bolts and nuts.
3. Aluminum alloy cable clamp guarantees good corrosion resistance.
4. Various size of cable clamps are available to fit for customers’ cable conductor.
5. Drain holes structure can prevent accumulated rain water inside the power line marker balls.
6. Powerline marker balls stacking compatible design, save storage space and freight charge.
7. Hhigh voltage power line markers optional Preformed Armor Rods provide better protection against vibration and abrasion.
8. Aircraft warning sphere optional reflective tape is more durable and economical solution for night visibility.
Specification:
|
Product Name |
Power Line Marker Balls Aircraft Warning Sphere 600mm Size AO-WS-A1 |
|
Mode NO.: |
AO-WS-A1 |
|
Color: |
Orange, Red, White, Orange/White, Red/White |
|
Visible Distance:
|
>1200m |
|
Voltage Range: |
35KV-1000KV |
|
Conductor diameter: |
6.5-55mm |
|
Aircraft warning sphere materials: |
FRP(Fiberglass Reinforced Polyester) |
|
Cable clamp:
|
Aluminum alloy
|
|
Bolts/nuts/washers: |
Stainless steel 304 |
|
Diameter: |
600mm(typical, other is optional) |
|
Weight: |
6.3kg |
|
Thickness: |
2.3mm |
|
Drain holes: |
Yes |
|
Life time: |
>10 years |
|
Fastener: |
Aluminum material, M10 by 35, M10 by 40 |
|
Work environment: |
-50℃~+90℃, Humidity 0%-100% |
|
Optional: |
1. Preformed Armor Rods 2. Reflective Strip |
Dimension & Installation:
Applications:
AAAC(All Aluminum Alloy Conductor), Cooper conductor, ACSR conductor(Aluminum Conductor Steel Reinforced), OPGW(Optical fiber composite overhead ground wire) etc Transmission cables. high voltage power line markers.
