Revon Lighting is an excellent and leading 90 degree high intensity obstacle lights chimney aviation warning light manufacturer & factory in China. Our high intensity aviation obstruction light is designed on the basis of ICAO and FAA standard.
Overview:
AO-HI-A3 mode 90 Degree High Intensity Obstacle Lights Chimney Aviation Warning Light illuminates white light 24 hours day and time. According to ICAO, FAA regulations, lighting of objects with a height 150 m or more above ground level, and this high intensity obstruction light needs to keep flahsing 24 hours at 40-60fpm. We adopt high intensity CREE LEDs as light source, stable quality and long life time.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique design and UV protected polycarbonate for the obstruction light casing.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die stainless steel which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. Special valve installed under the base to make sure the air could go through but water is avoid, so that the whole 90 degree high intensity obstacle lights chimney aviation warning Light temperature won’t be high.
7. Built-in photocell for daytime, twilight and night operation.
8. Surge and lightning protection.
9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.
Specification:
|
Product Name |
90 Degree High Intensity Obstacle Lights Chimney Aviation Warning Light |
|
Mode NO.: |
AO-HI-A3 |
|
Color: |
White |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
Type A: 200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
|
Horizontal Output(degrees): |
90 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
40-60FPM
|
|
Operation Mode: |
24 hours operation, 3 different modes |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<80W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
Glass and die-casting aluminum casing. |
|
Weight(kg): |
9kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

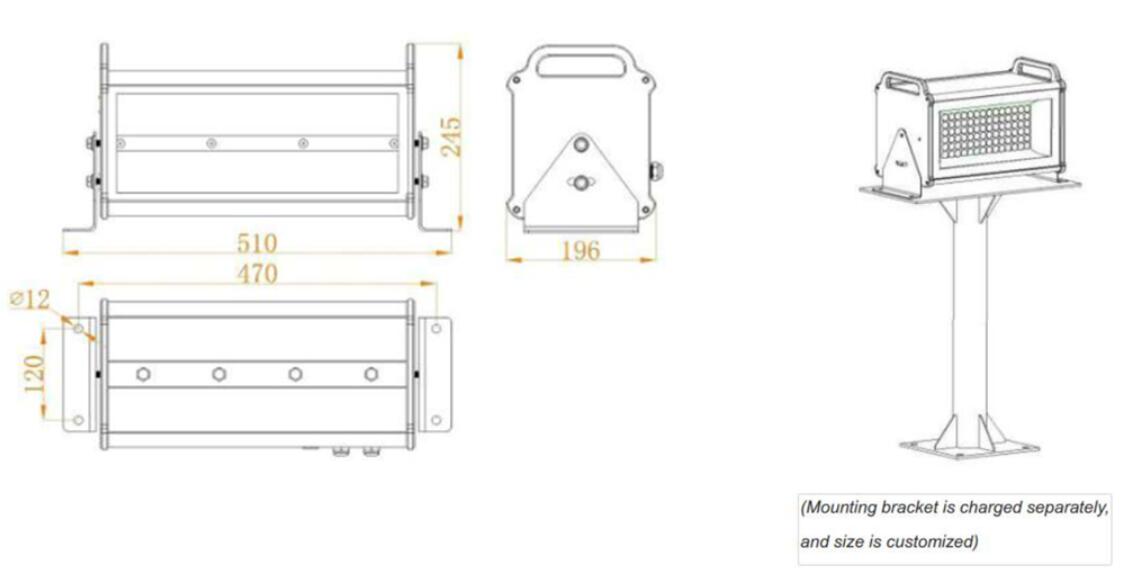

Dimension & Installation:
Applications:
AO-HI-A3 90 degree high intensity obstacle lights chimney aviation warning light is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 150m, and it needs work with medium intensity obstruction lights, low intensity obstacle lights installed on the lower place.
