ICAO Type C Type B medium intensity LED Obstruction Light Aircraft Warning Lights for Buildings

Revon Lighting is a China leading ICAO Type B medium intensity LED Obstruction Light Aircraft Warning Lights for Buildings manufacturer. Our medium intensity ed aviation light is designed on the basis of ICAO and FAA standard.

New Customer Order 100US$ OFF, Inquiry Now

     Overview:

Type C Type B medium intensity LED Obstruction Light Aircraft Warning Lights for Buildings, it flash red color  night time. According to ICAO, FAA regulations, this medium intensity led aviation light is designed for marking top of obstacle which height is between 45 to 105 meters.  and this led obstruction light needs to keep flahsing or steady burning in night time . We adopt high intensity SMD LEDs as light source, stable quality and long life time.



     Compliance:

1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018

2. FAA L-864.



     Features:

1. Adopt super bright SMD5730  LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Unique design and UV protected polycarbonate for the obstruction light protect cover.

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. Special valve installed under the base to make sure the air could go through but water is avoid, so that the whole ICAO Type C Type B medium intensity LED Obstruction Light Aircraft Warning Lights for Buildings temperature  won’t be high.

7. Built-in photocell for daytime and night operation.

8. Surge and lightning protection.

9. Kinds of optional functions available, such as GPS synchronous flashing, sequence flashing, alarm relay etc.



     Specification:

Product Name

ICAO Type C Type B medium intensity LED Obstruction Light Aircraft Warning Lights for Buildings

Mode NO.:

Type B: AO-MI-B1; Type C: AO-MI-C1

Color:

Red

Light source:

SMD 5730 LED

Light Intensity(cd):

Type B: 2,000cd±25% (Night)

Type C: 2,000cd±25% (Night)

Horizontal Output(degrees):

360 degree

Vertical Divergence(degrees):

3-7 degree

Flashing Characteristics:
Type B: 20-60FPM, Type C: Fixed Lighting.

Operation Mode:

Night working, daytime off

Input:

100-240VAC 50-60Hz, 12-48VDC(Details contact us)

Power Consumption(W):

Average Power consumption<15W

Circuit Protection:

Integrated

Obstruction Light Material:

PC cover, ABS reflector and Powder coated die-casting aluminum base.

Weight(kg):

4.5kg

IP Grade:

IP66

Work environment:

-50℃~+60℃, Humidity 0%-100%



Optional functions(Separate charges):

1. GPS Sync Flashing,

2. infra-Red (IR) light for NVG

3. Mounting bracket

4. Other functions etc.

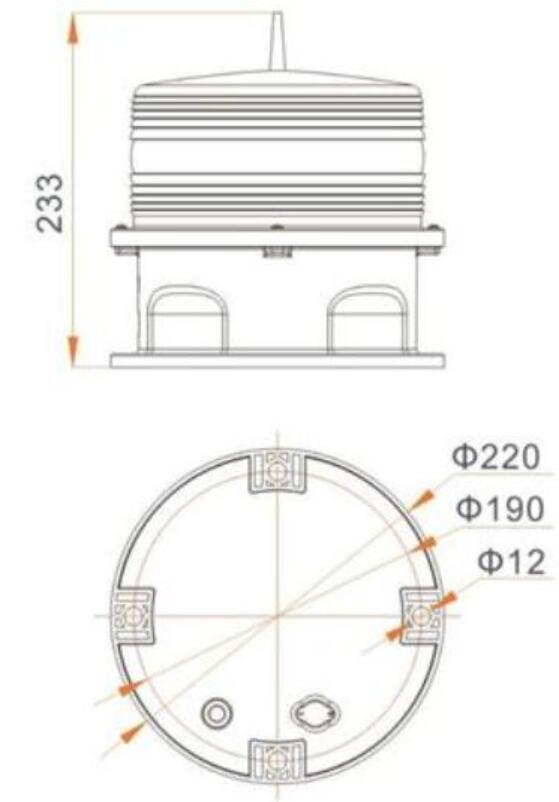

     Dimension & Installation:



     Applications:

AO-MI-B1 ICAO Type C Type B medium intensity LED Obstruction Light Aircraft Warning Lights for Buildings is used for telecommunication Tower, tower obstruction lighting, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine,  oil & Gas offshore platform etc when the obstacle height is 45-105m, and it needs medium intensity aviation obstruction light in the top, and low intensity obstacle lights installed on the lower place.
