Overview:

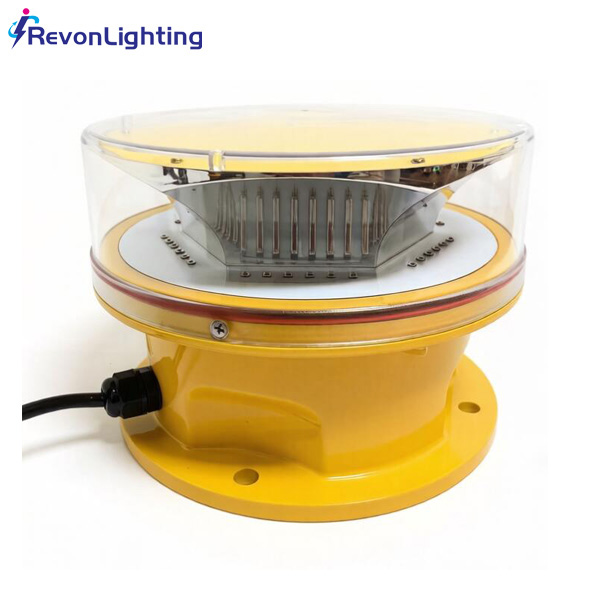

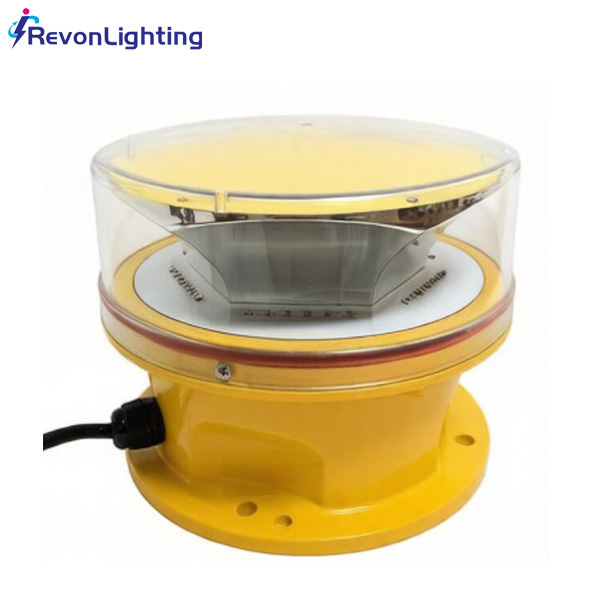

AO-HP-B1 helipad Light heliport beacon is necessary visual guidance and identification of the heliport. The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range. The helipad beacon flashes white color 4 times in 0.8s and stop for 1.2s, then start new circle for 2s (0.8s+1.2s ).

Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA AC 150/5390-2B Heliport Design Guide

Features:

1. Adopt super bright brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection...

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. UV protection Powder coated bright yellow color base make better visibility.

Specification:

Product Name	Helipad Light Heliport Beacon Flashing Morse code H
Mode NO.:	AO-HP-B1
Color:	White
Light source:	LEDs
Light Intensity(cd):	2500cd
Horizontal Output(degrees):	360 degree
Installation type:	Surface mounting
Flashing Characteristics:	4 quick flashes in 0.8s, off 1.2s (Morse code “H”)
Operation Mode:	24 hours after power on
Input:	100-240VAC 50-60Hz, 12-48VDC(Details contact us)
Power Consumption(W):	Average Power consumption <12W
Circuit Protection:	Integrated
Helipad Light Material:	lens and Powder coated die-casting aluminum base.
Weight(kg):	2kg
IP Grade:	IP66
Work environment:	-50℃~+60℃, Humidity 0%-100%
Optional functions(Separate charges):	1. VHF pilot to ground remote control 2. Mounting bracket
