Helipad Light TLOF FATO Helideck Perimeter Light Inset Type

Overview:

AO-HP-IL1 helipad light is one kind of inset heliport lighting products, it has many kinds of applications, such as helideck perimeter light, Heliport TLOF, FATO Light etc. It could be used as aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway light, runway light, flight path Lighting, etc. The emitting color can be yellow, green, white. This inset helipad light can bear the striking from aircraft or maintenance vehicles.

Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA AC 150/5390-2B Heliport Design Guide

Features:

1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Pressure resistance lens allowed the vehicles go through on light..

4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.

5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time

6. Die-casting aluminum covered by hard anodizing layer have good corrosion protection and load bearing.

7. IP68 waterproof ensure light work fine underground.

Specification:

Product Name	Helipad Light TLOF FATO Helideck Inset Perimeter Light
Mode NO.:	AO-HP-IL1
Color:	Green/yellow/white etc
Light source:	CREE LED
Light Intensity(cd):	>100cd
Horizontal Output(degrees):	360 degree

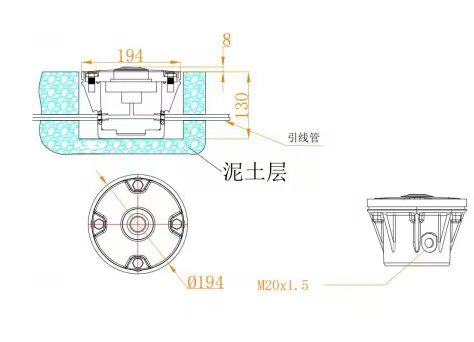

Installation type:	Concealed installation (inset)
Flashing Characteristics:	Fixed light steady burning
Operation Mode:	24 hours after power on
Input:	100-240VAC 50-60Hz, 12-48VDC(Details contact us)
Power Consumption(W):	Average Power consumption 7W
Circuit Protection:	Integrated
Helipad Light Material:	lens and Powder coated die-casting aluminum base.
Weight(kg):	4.5kg
IP Grade:	IP68
Work environment:	-50℃~+60℃, Humidity 0%-100%
Optional functions(Separate charges):	1. VHF pilot to ground remote control 2. Infra-Red (IR) light for NVG 3. Mounting bracket
