Wind Cone Heliport Airport Wind Cone Helipad Windsock

Overview:

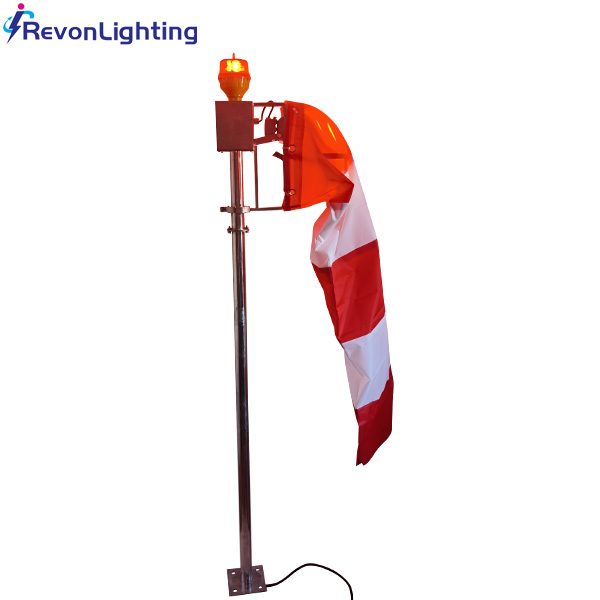

AO-HP-W1 wind cone heliport light, it is internally Illuminated, the obstruction light in the top, and led flood light inside the wind cone, and it will rotate together with windsock too. An aerodrome shall be equipped with at least one wind cone as wind direction indicator.

Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA AC 150/5390-2B Heliport Design Guide

Features:

1. Adopt super bright brand LED, high intensity with a lower energy consumption.

2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).

3. Wind cone heliport pole is made of corrosion resistance and wind resistance stainless steel 304.

4. One obstruction light on top, one flood light inside wind cone for illumination.

5. Rotatable design, the wind cone can rotate with the wind.

6. Pole height is customized(1me, 1.5m, 2.5m, 3m, 4m, 5m...).

7. Windsock color is: orange(Nylon), red/white(PVC).

Specification:

Product Name	Wind Cone Heliport Airport Wind Cone Helipad Windsock
Mode NO.:	AO-HP-W1
Color:	Obstruction light red color, flood light white color
Light source:	LEDs
Pole height:	1m, 1.5m(standard), 2m, 3m, 4m... etc
Special design:	Internally Illuminated Heliport Wind Cone
Windsock dimension:	Pole height:＜4m, Length: 1.2m, big diameter: 300mm, small diameter: 150mm; Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm, small diameter: 300mm; Pole height: ＞6m, Length: 3.6m, big diameter: 900mm, small diameter: 450mm.
Flashing Characteristics:	steady burning, fixed light
Operation Mode:	24 hours after power on
Input:	100-240VAC 50-60Hz, 12-48VDC(Details contact us)
Power Consumption(W):	Average Power consumption <12W
Wind resistance:	80m/s
Wind cone heliport Material:	stainless steel 304 pole, Nylon or PVC wind cone
Windsock color:	Orange, red/white ( other is available)
IP Grade:	IP65
Work environment:	-50℃~+60℃, Humidity 0%-100%
Optional functions(Separate charges):	1. Frangible coupling is optional 2. Solar power system
